Stability and safety

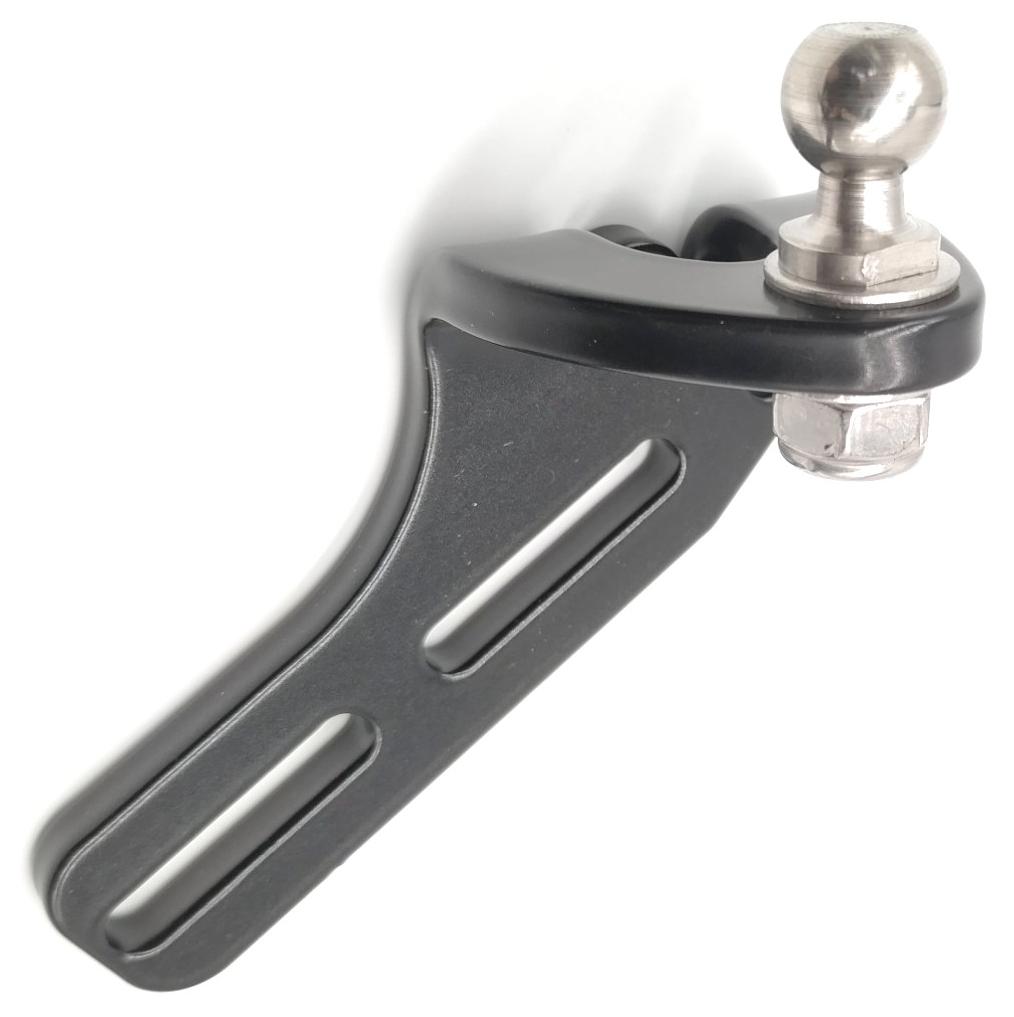

We design specific bicycle hitches that are attached close to the rear wheel axle of suitable bikes.
The hitches are fixed to the frame using existing holes (mudguards, brake callipers, luggage racks) or with specific clamps.
Suitable bikes
Important features a bike should have when towing a trailer

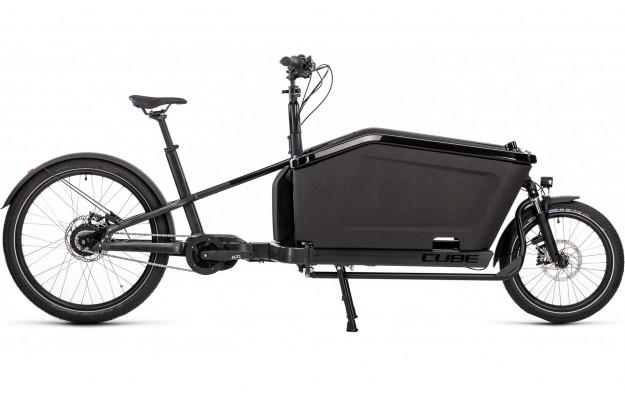

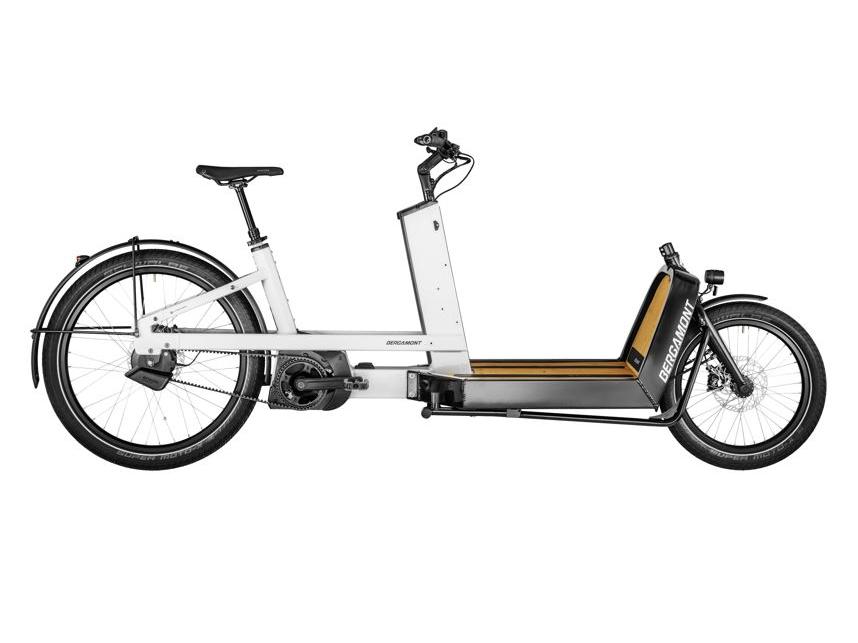

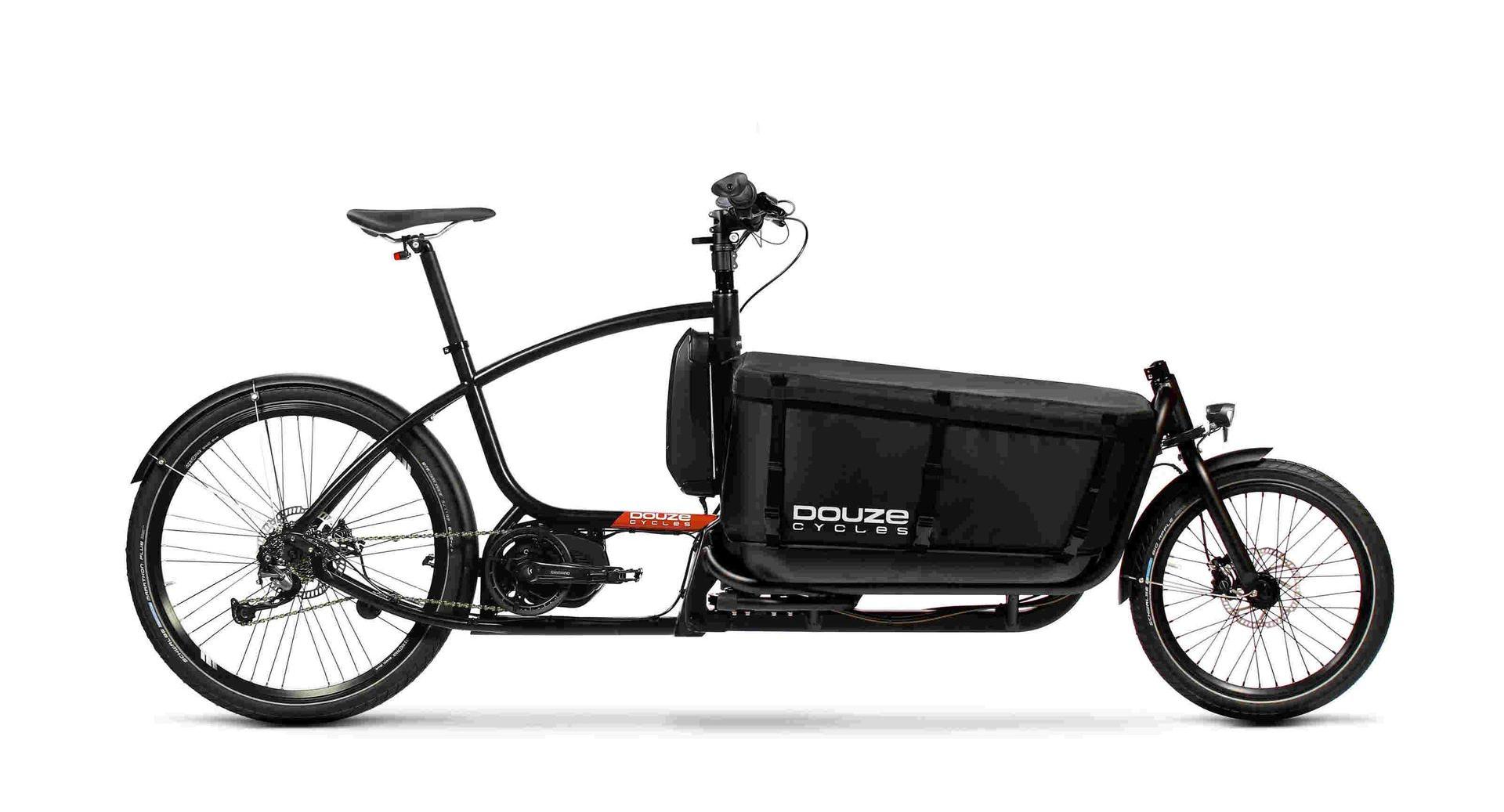

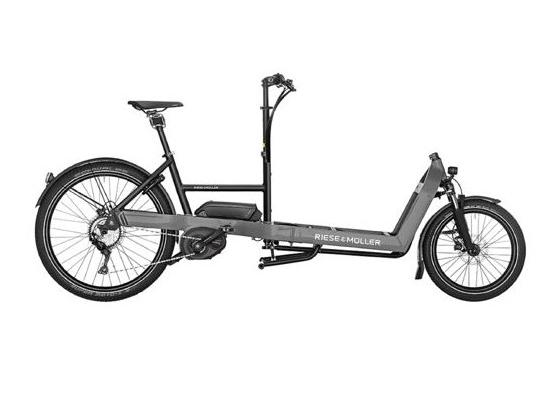

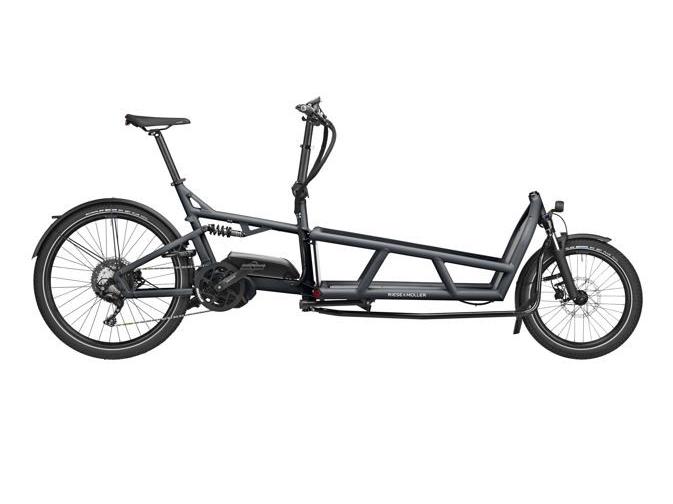

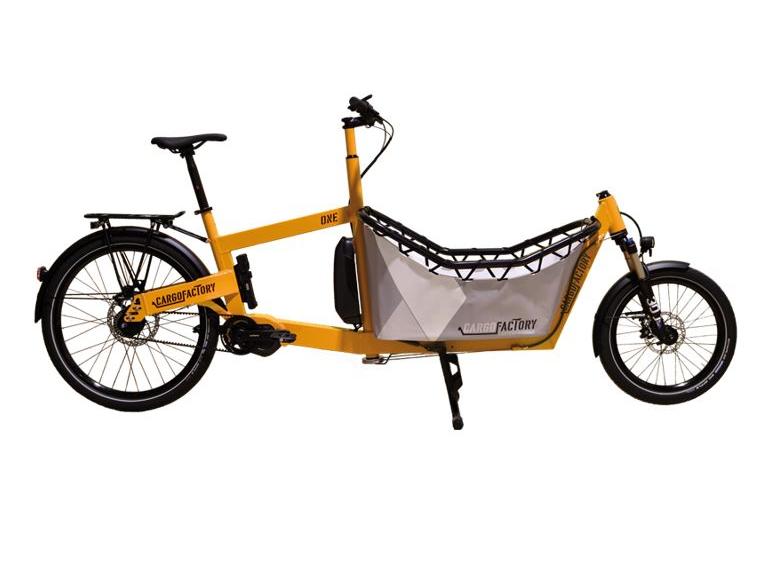

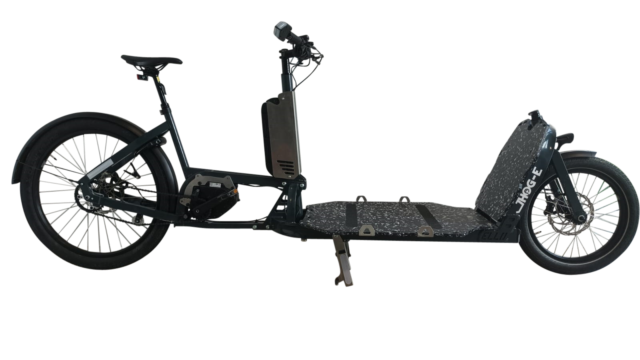

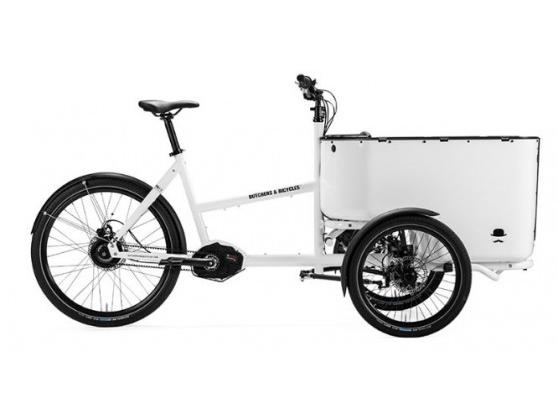

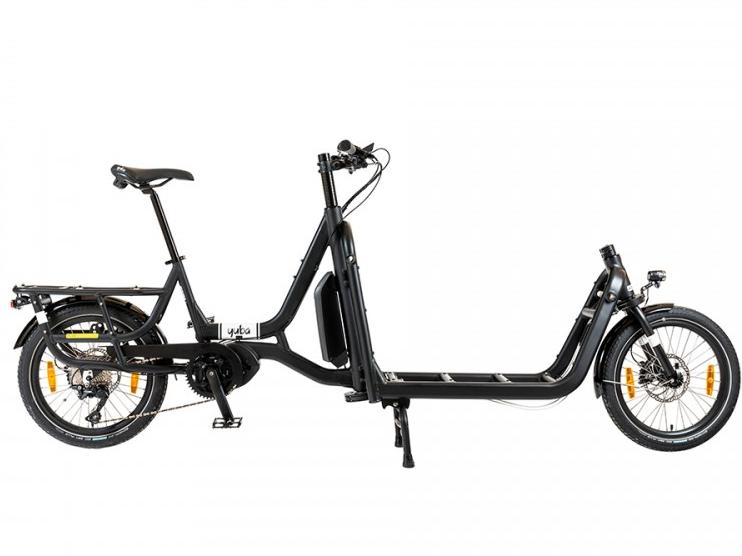

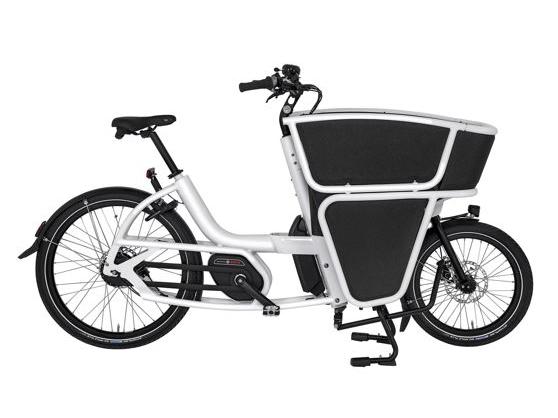

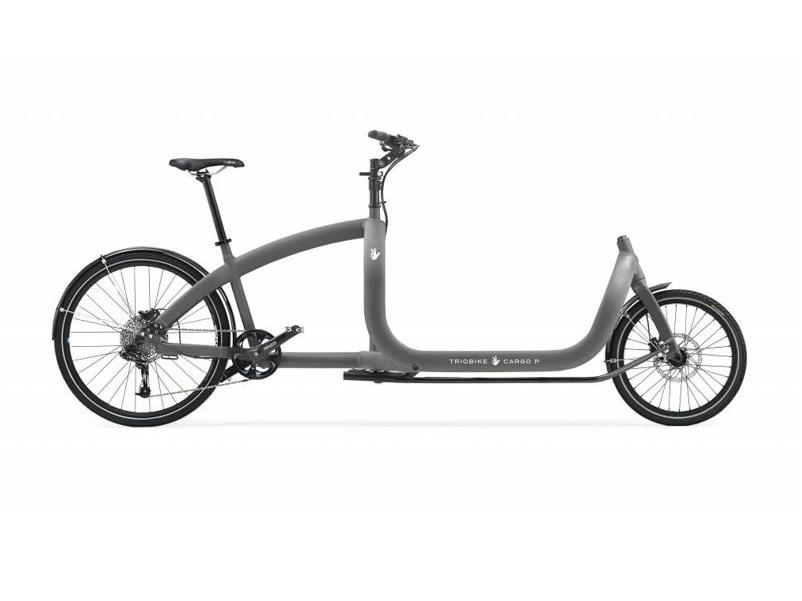

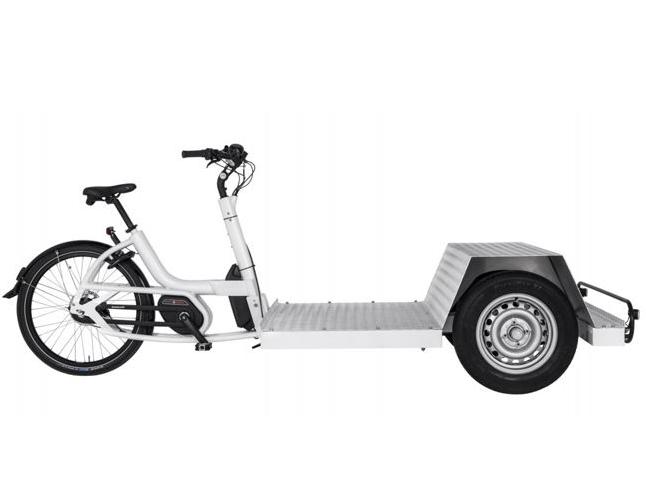

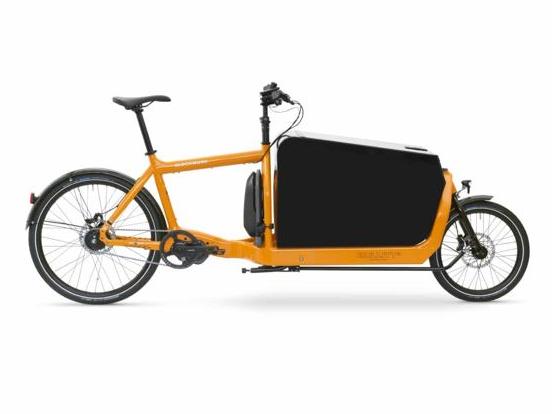

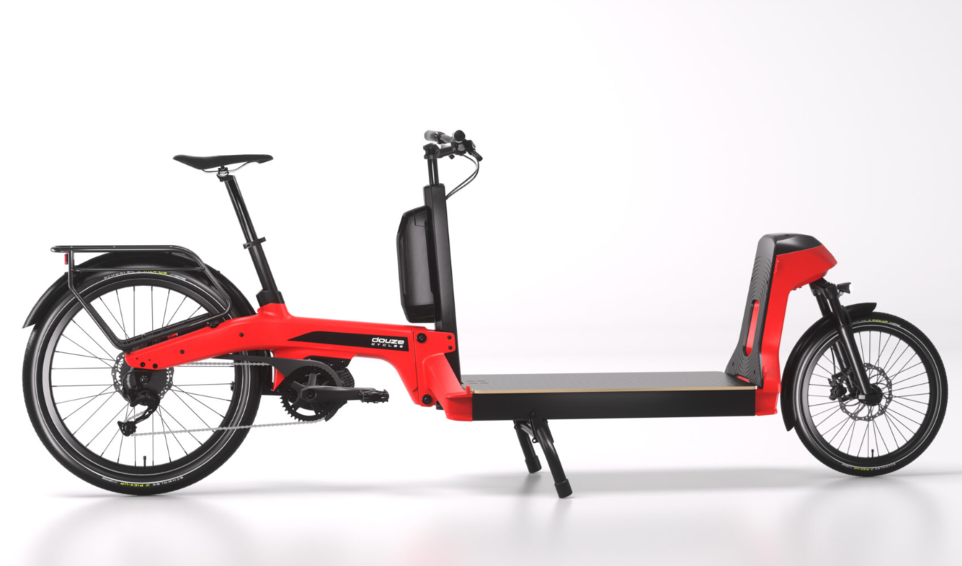

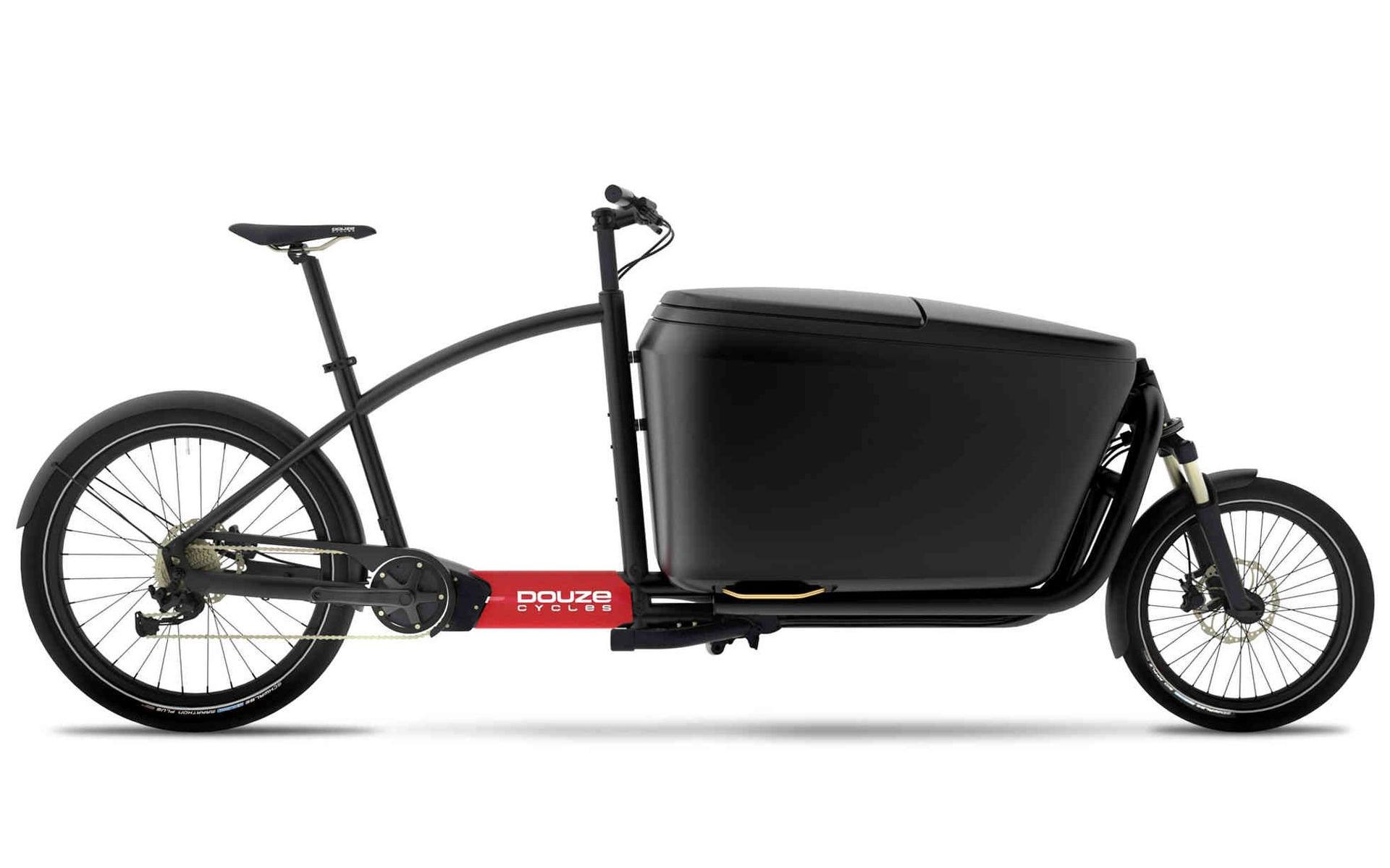

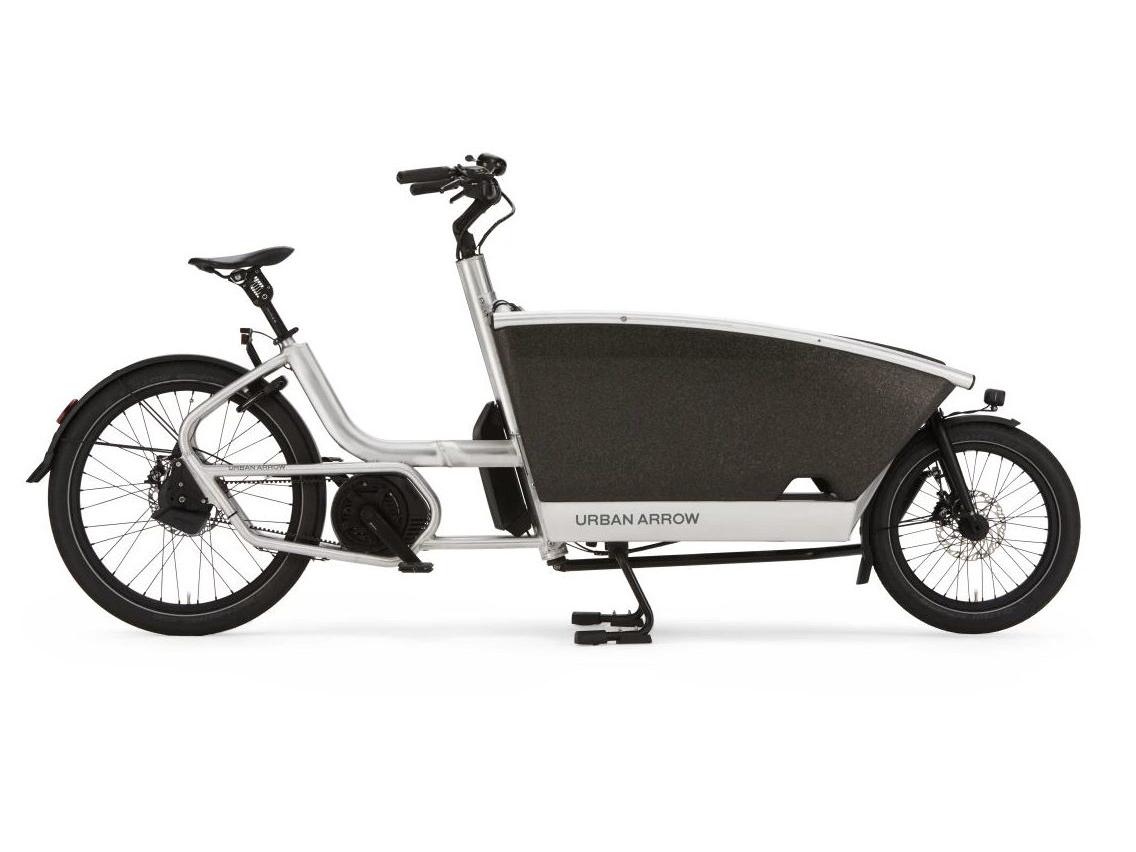

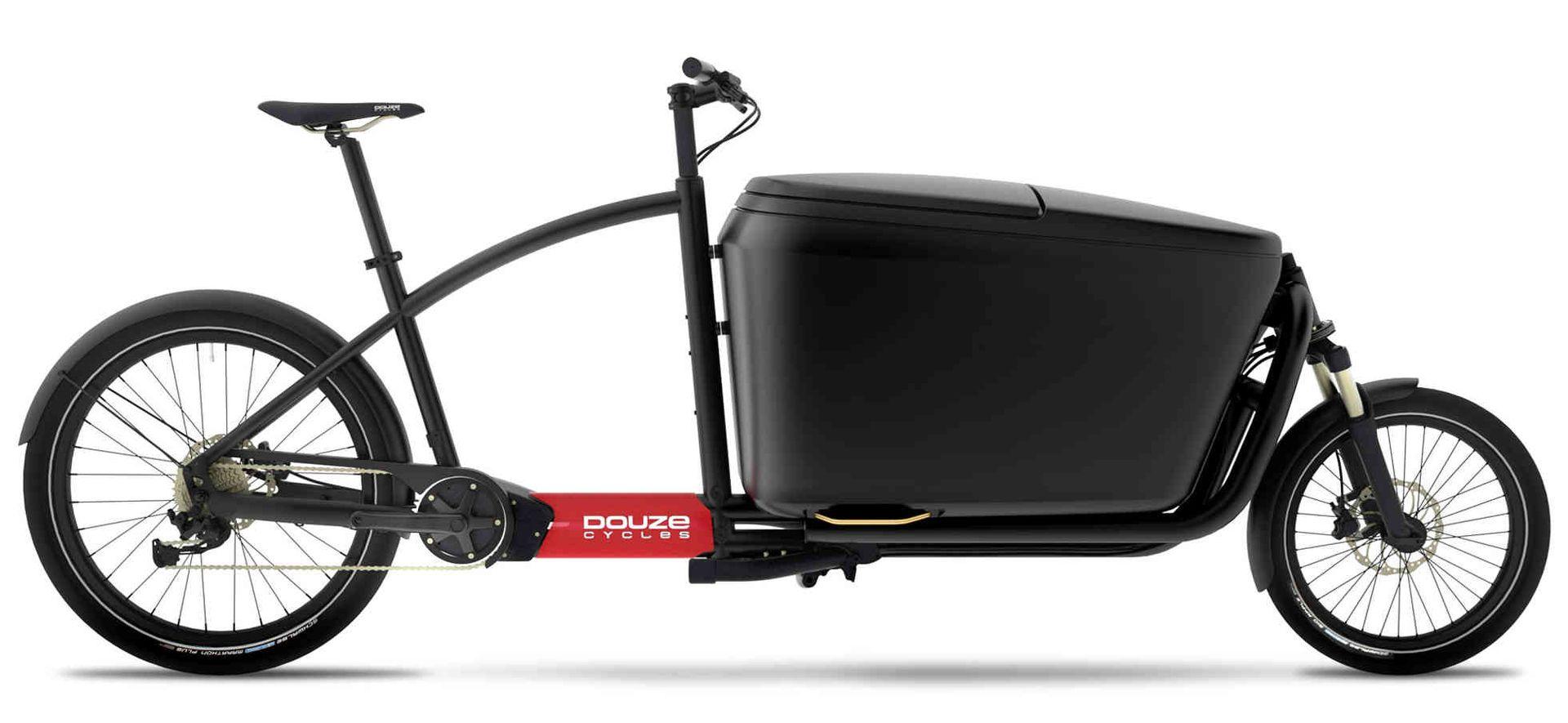

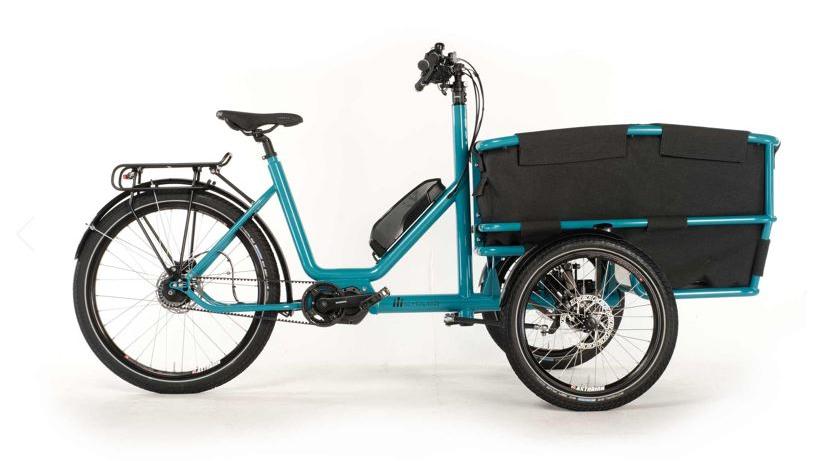

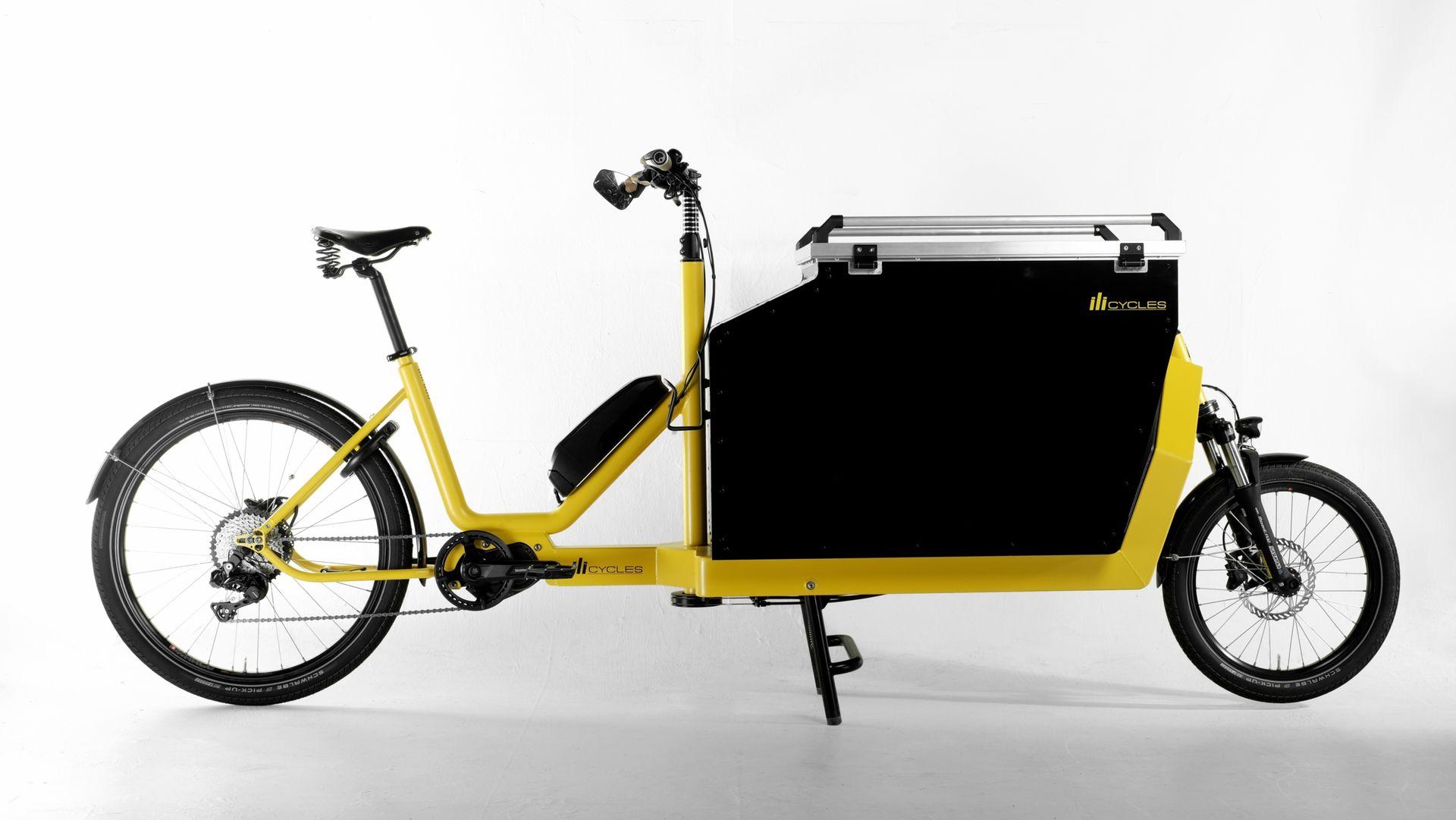

Frontloader cargo bikes

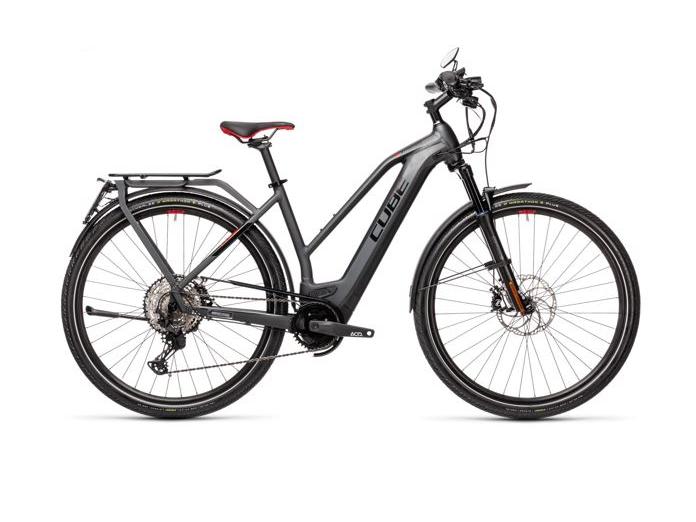

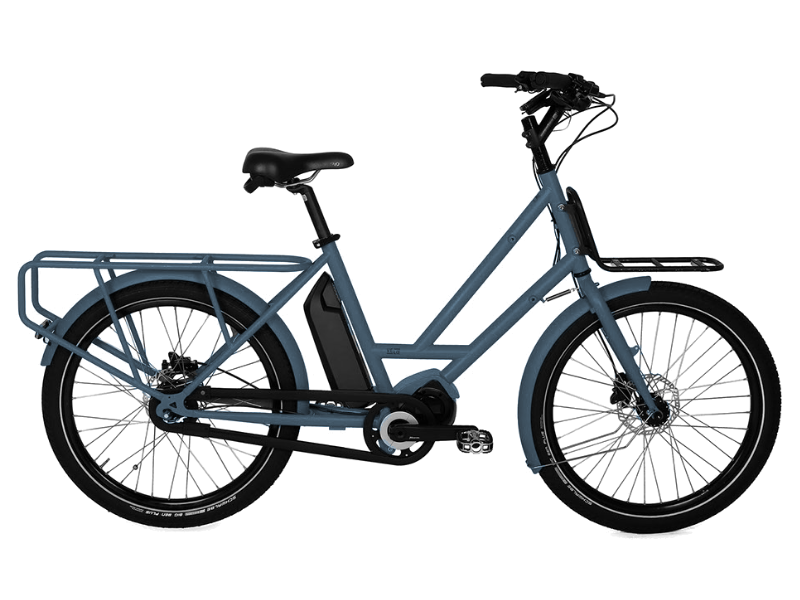

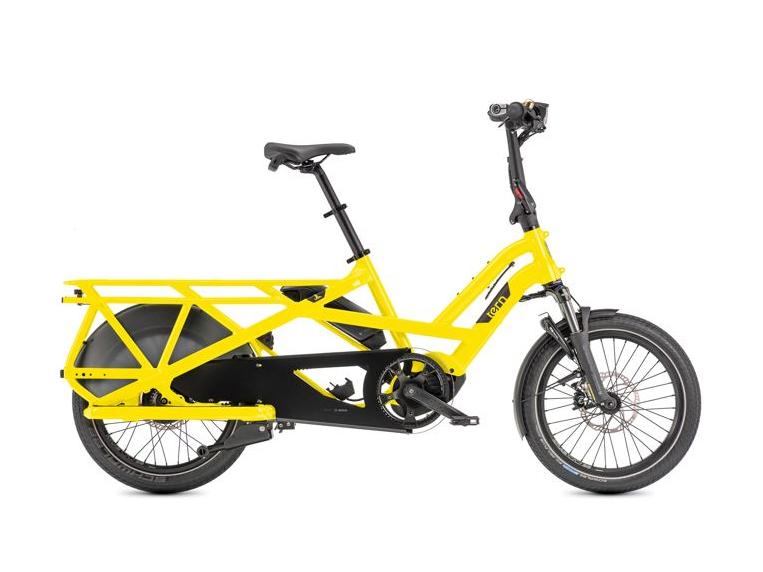

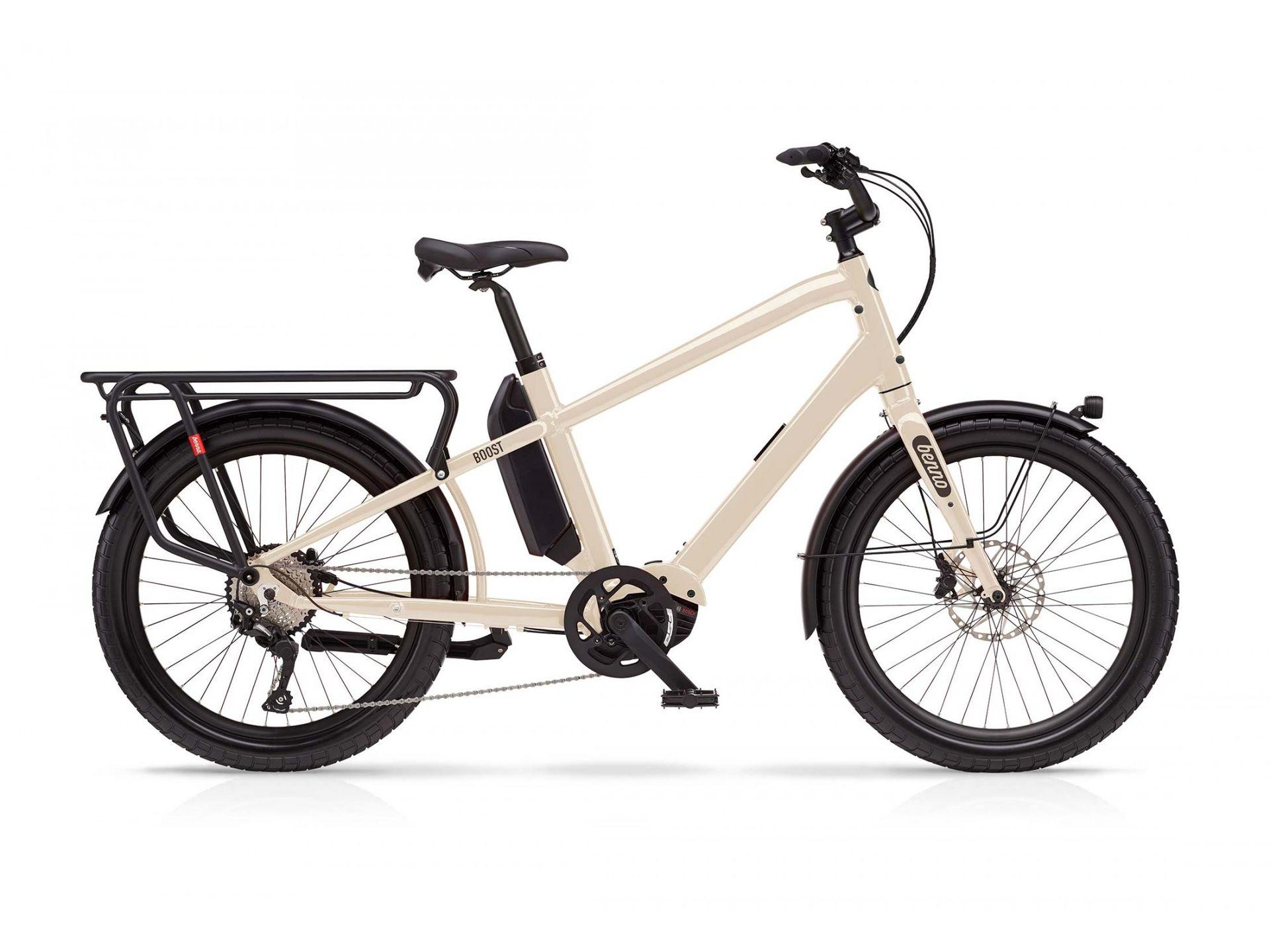

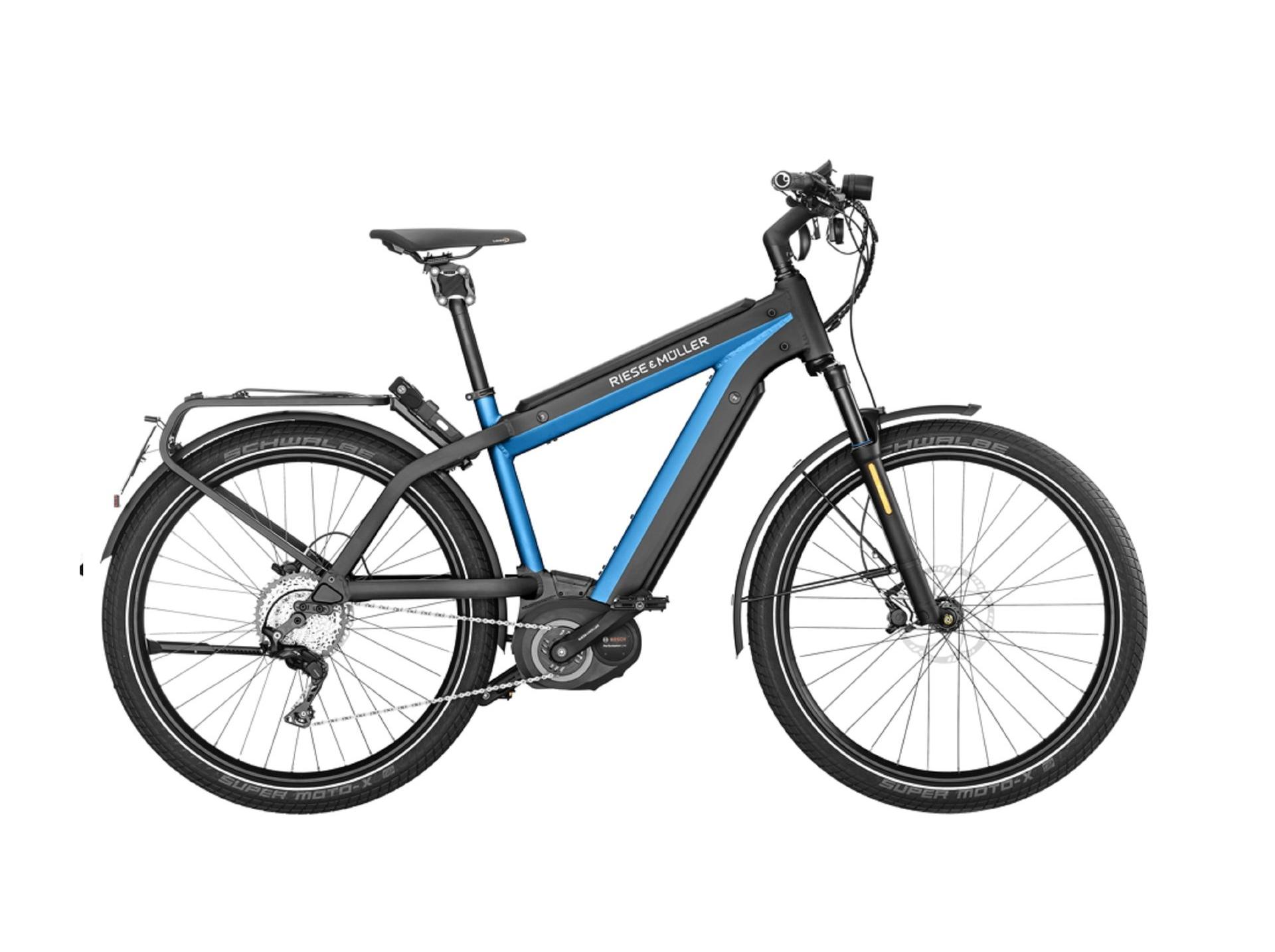

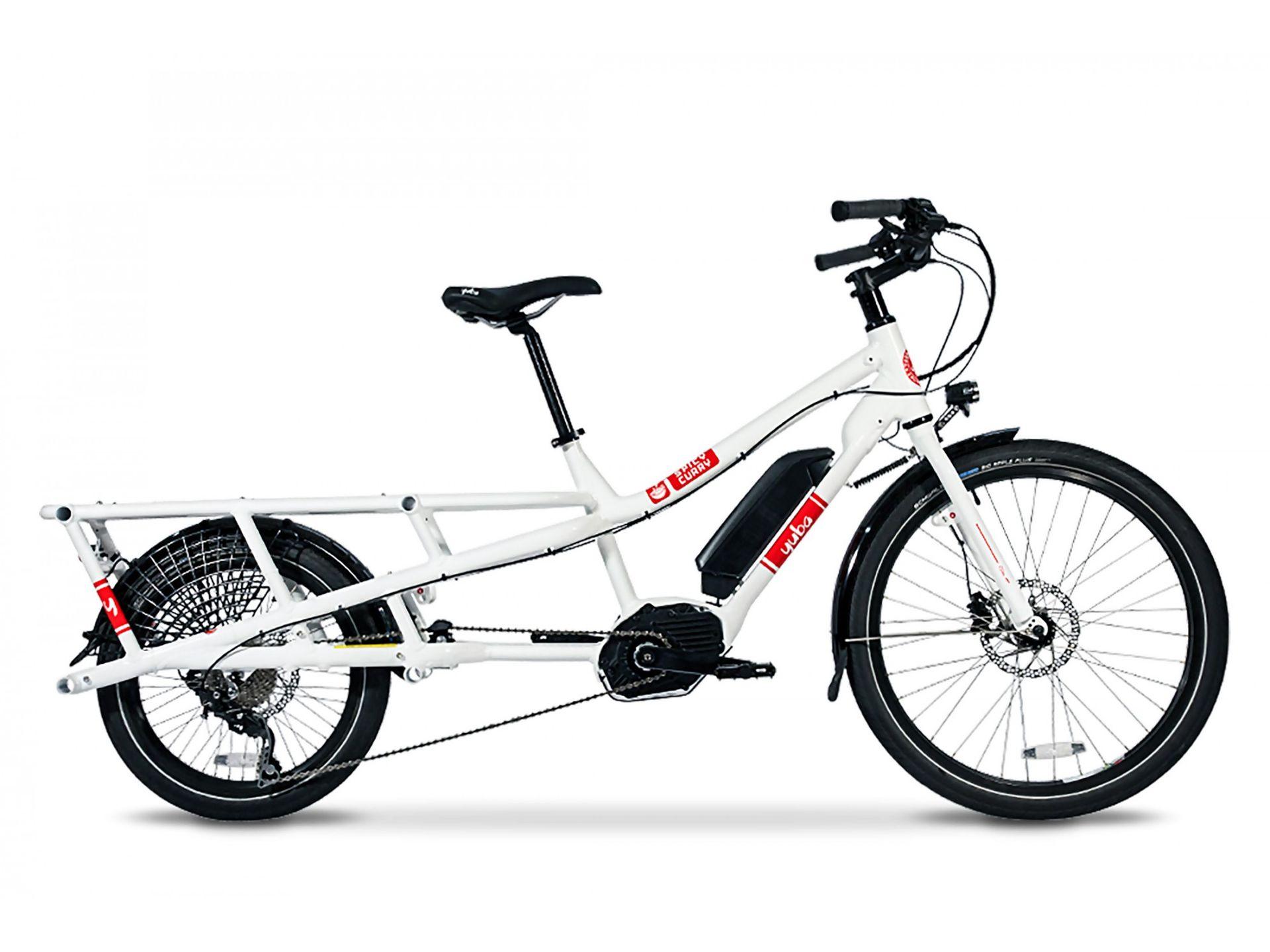

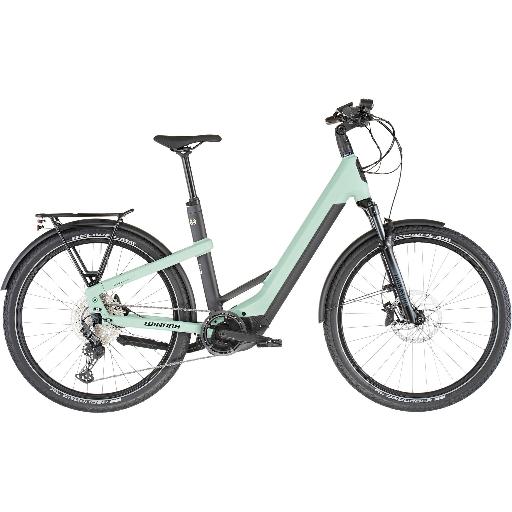

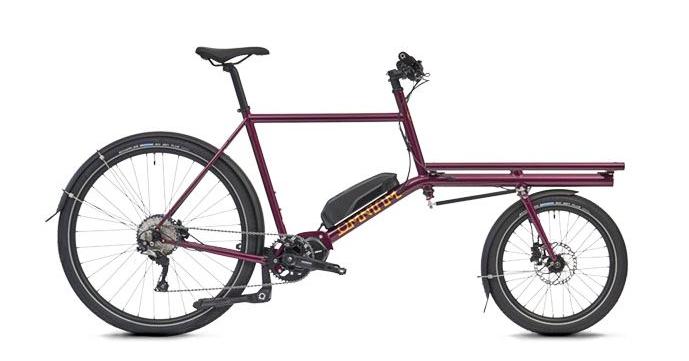

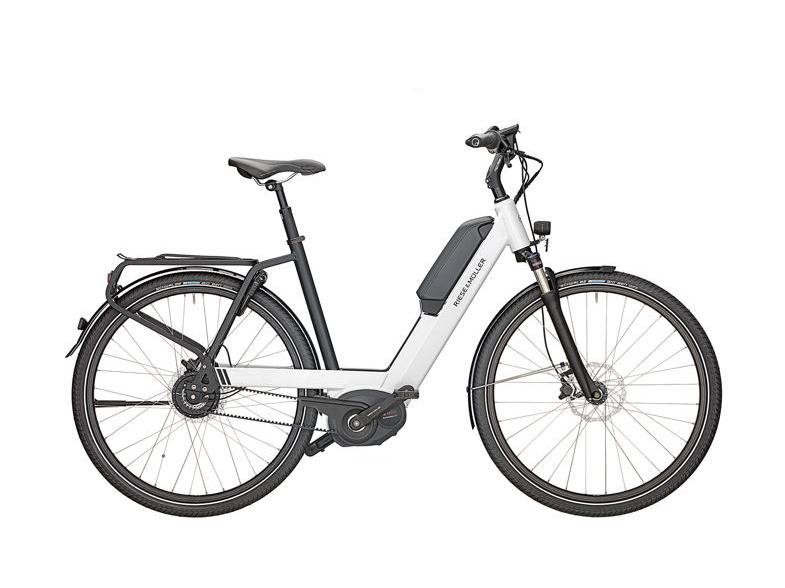

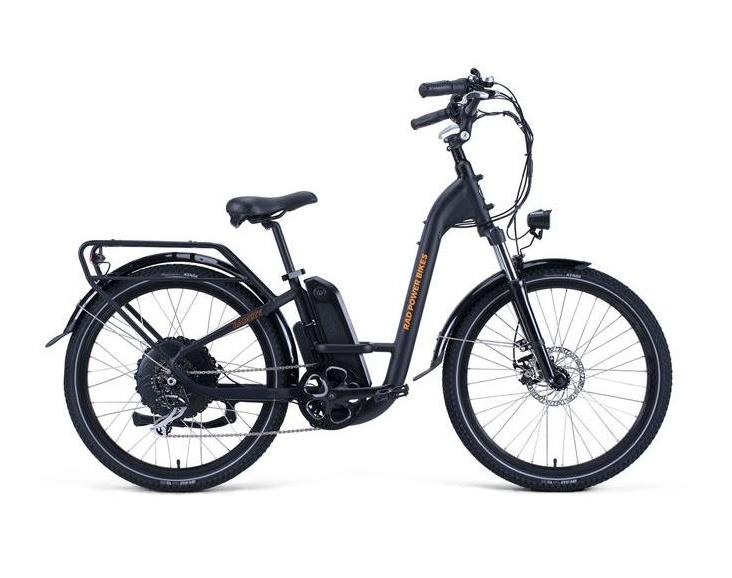

ebikes, longtails and others

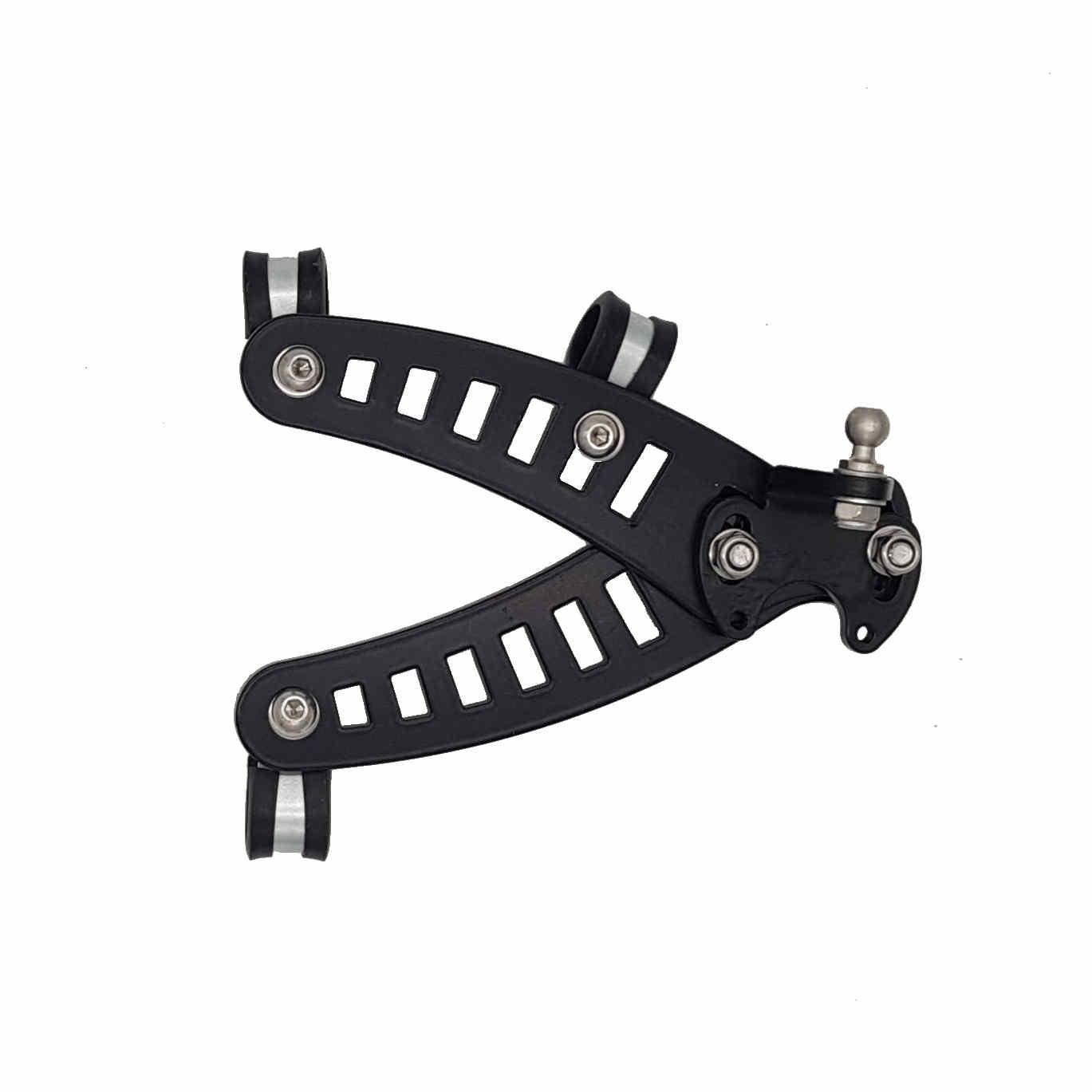

About the frame hitch
In order to adapt to the different geometries of bicycle frames, we have developed a frame hitch. Its arms are adjustable to match the frame of the bike.
To use it you must ensure that you have room to install the clamps. Minimum of 3 clamps installed as far as possible from each other. Different sizes (12 and 18 mm) are supplied. 24 mm on request. Be aware of the placement of the brake caliper, cables or the kickstand when installing the hitch.
The ball must be at a height of ~360 mm from the ground and within 390mm of the rearmost point of the bike.
As an option, we offer a suitable bikestand that can be attached directly to the frame hitch.
How to choose your bike?
The BicyLift and Runner are professional trailers and require professional quality bikes for a safe and reliable use.
We do not impose a model but recommend parameters that we consider important:
Robustness
Forget the racing bike, prefer a more robust frame and equipment (wheels, tires, transmissions,...)
Braking capacity
For the trailer brakes to activate, the bicycle brakes must work under all conditions. Therefore, hydraulic disc brakes are recommended.
Transmission
Gear hubs allow you to change gears when stationary.
Derailleurs are easier to repair.
Electric assistance
Unless you are in a flat area and do not tow heavy loads, the use of an electric-assisted bicycle seems essential. Various types of assistance exist. We recommend mid-motors with a torque of at least 80Nm (Bosch Performance CX, Bosch Cargo Line, Shimano step8000, Shimano EP800, Brose drive S).
Load capacity
Depending on your activity, you will have a greater or lesser interest in being able to carry goods on the bike in addition to loading the trailer. Combined with the delivery of a pallet, you could thus ensure some additional poses of packages on the way.
Stability when standing still
During deliveries, the bike is immobilized at every stop. That's why we recommend a bike with a solid bike stand, preferably on the back of the bike for more stability when our trailers are attached.
Pourquoi les remorques sont-elles attelées proche du moyeu arrière des vélos ?
Why are the trailers coupled near the rear hub of the bikes ?
For stability, thus safety. With this configuration, the trailers cannot tip the bike over in curves or when the bike brakes. When the trailers are attached to the seatpost, it is way easier to lose equilibrium. Seatposts are also not designed to pull heavy loads.
Our hitches are also designed to ensure the safety of the cyclist in the event of a crash with a vehicle coming from behind. The hitch is designed to break in order to preserve the bike and protect the cyclist.
FlexiModal is involved in the redaction of the French norm for cargo bikes and trailers.
