Hitches for stability and safety

We design specific hitches coupled near the rear hub of the bike.

They are fixed with screws in the frame or tied with special clamps.

Choose your hitch

Bikes which work for professionals with our trailers

Suitable bikes for pulling trailers

Find out our recommendations




Front loader cargobikes

Cargobike Bergamont

Bergamont e-cargoville LJ

Specific hitch

eBullitt cargobike

Bullitt

Specific hitch 2 versions gearhub or derailleur

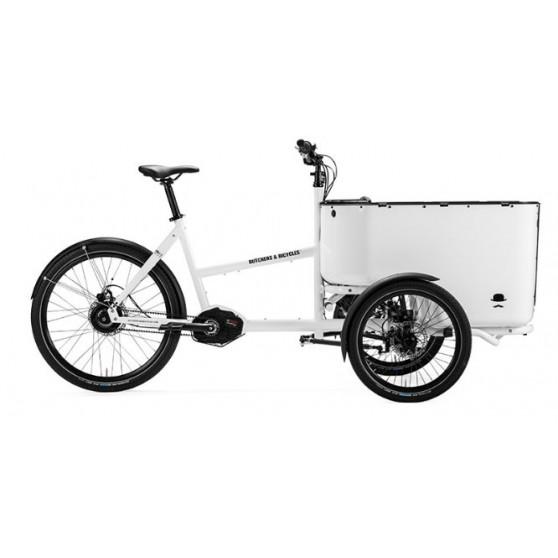

Butcher & Bicycle

Universal hitch

Cargo Factory cargobike

Cargo Factory

Specific hitch

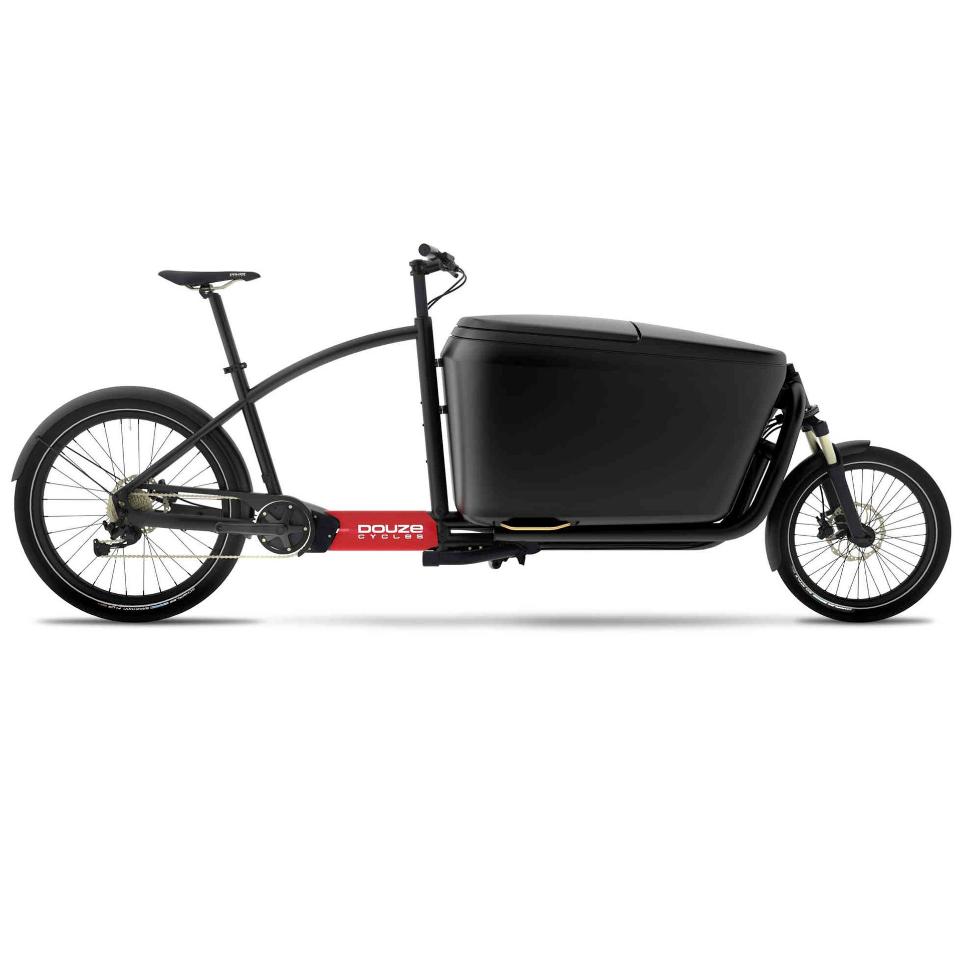

Cargobike Douze G4

Douze G4

Specific hitch

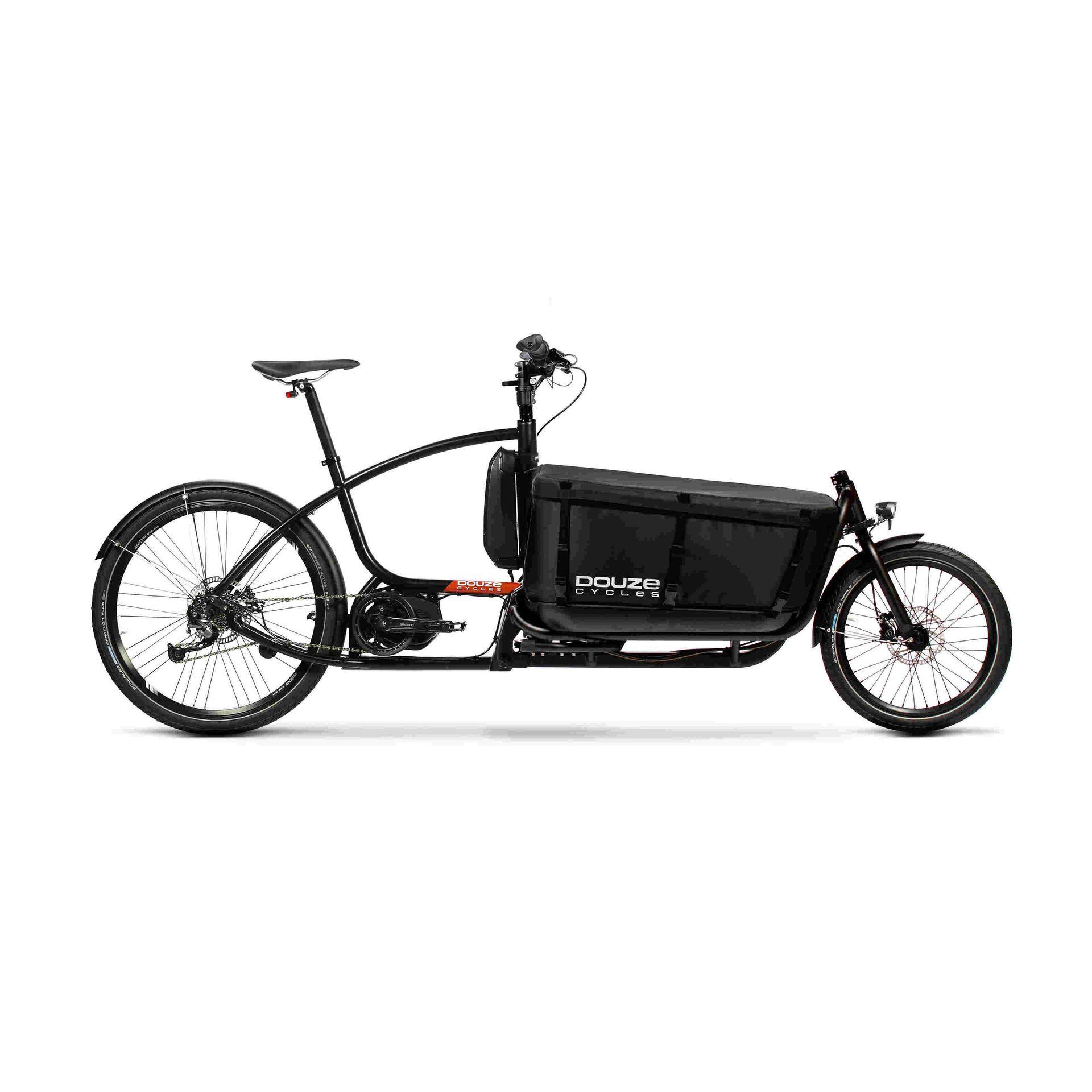

Cargobike Douze V2

Douze V2

Specific hitch

ili Cycles cargobike

ili Cycles

Universal hitch

Omnium

Specific hitch

R&M Load cargobike

Riese&Müller Load

Specific hitch (Load and Delite)

Riese&Müller Packster

Specific hitch (Packster and Nevo)

Triobike

Specific hitch

Urban Arrow Cargo

Specific hitch (compatible with other Urban arrow models)

Urban Arrow Shorty

Specific hitch (compatible with other Urban arrow models)

Urban Arrow Tender

Specific hitch (compatible with other Urban arrow models)

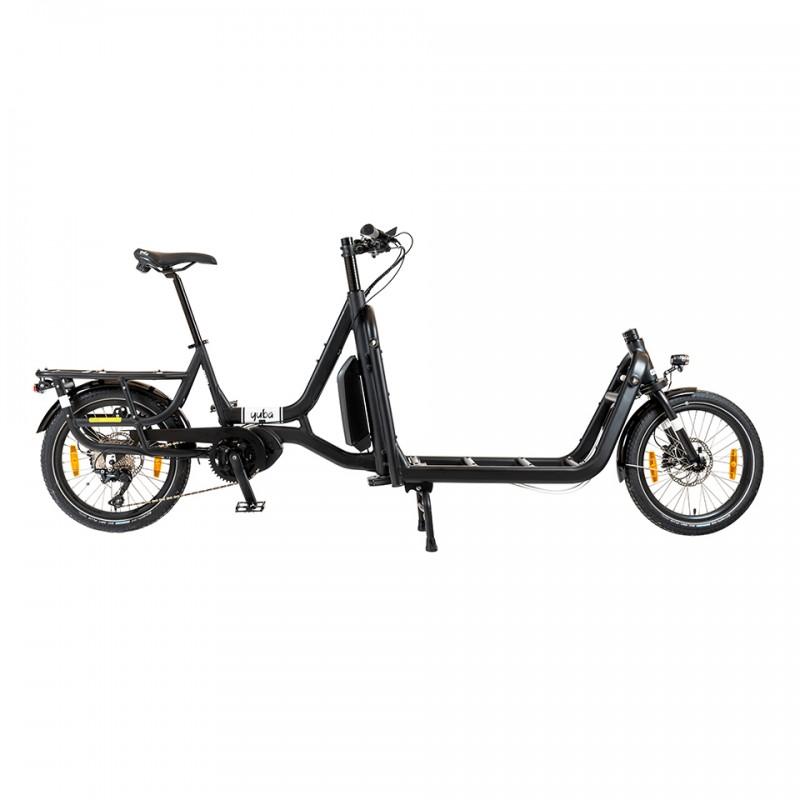

Yuba Supercargo CL

Universal hitch (18 & 24mm clamps)

Classical bikes & longtails

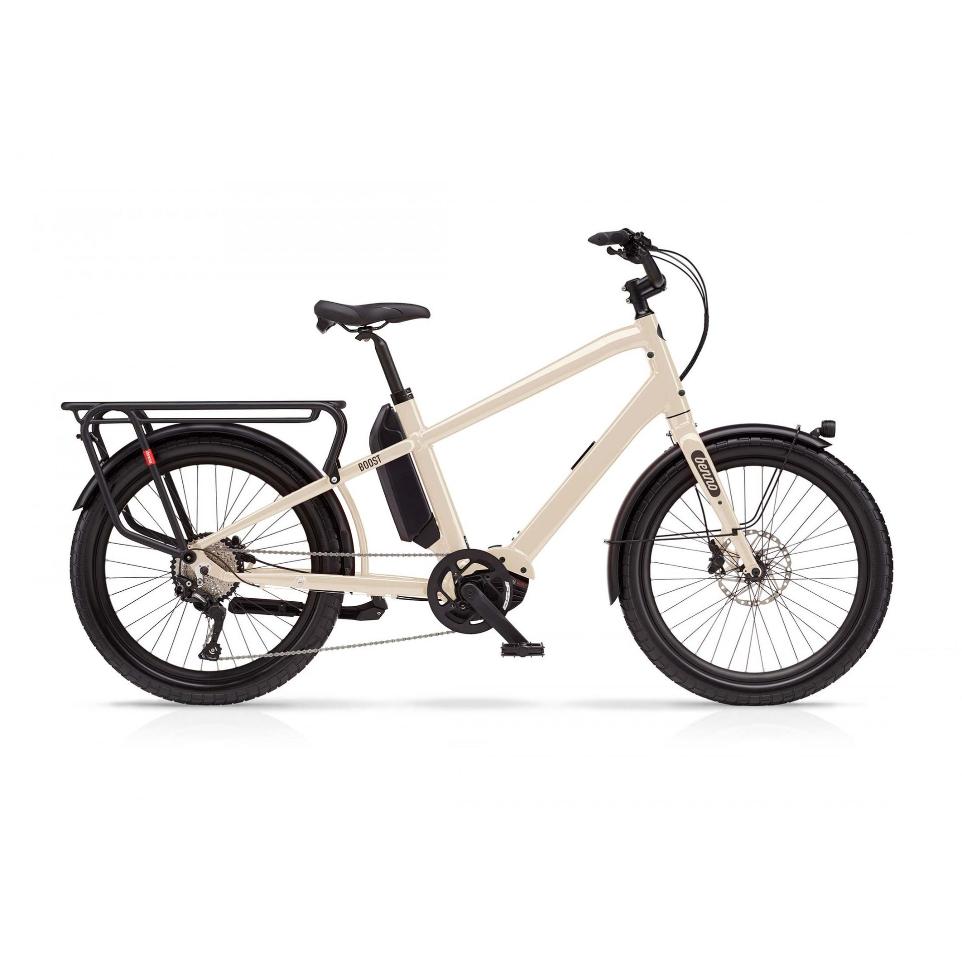

Benno Boost

Universal hitch

Cube Katmandu

Universal hitch

Rad Power Bikes Radcity

Specific hitch

Riese & Müller Nevo

Specific hitch (Nevo and Packster)

Tern GSD

Specific hitch

Trek Supercommuter

Specific hitch

Veloe

Specific hitch

Yuba SpicyCurry

Universal hitch (18 & 24mm clamps)

About the 'universal hitch'


To adapt to a diversity of bicycle frames, we designed the universal hitch. Its branches are orientable in angle to fit different bike geometries.

To use it you have to check that you have space to install the clamps. Minimum 3 clamps with the maximum distance between them, different sizes of clamps: 12mm, 18mm supplied, 24mm on demand.  Take into account the brake caliper position, the cables or the stand attachment.

The ball center must be at ~360mm from the ground and less than 390mm from the rearmost point of the bike.

We propose a bike stand which could be installed on the universal hitch.

How to choose your bike ?

The BicyLift and Runner are professional trailers. They require professional bicycles to ensure satisfactory conditions of safety and reliability.

FlexiModal does not impose any particular models but would like to inform you about your choice. Several parameters seem important to us:

Robustness

Forget the racing bike, prefer a more robust frame and equipment (wheels, tires, transmissions,...)

Braking capacity

For the trailer brakes to activate, the bicycle brakes must work under all conditions. Therefore, hydraulic disc brakes are recommended.

Transmission

Gear hubs allow you to change gears when stationary.

Derailleurs have an easier maintenance.

Electric assistance

Unless you are in a flat area and do not tow heavy loads, the use of an electric-assisted bicycle seems essential. Several types of assistance exist. We recommend mid-motors with a torque of at least 80Nm (Bosch Performance CX, Bosch Cargo Line, Shimano step8000, Shimano EP800, Brose drive S).

Carrying capacity

Depending on your activity, you will have a greater or lesser interest in being able to carry goods in the bike in addition to loading the trailer. Combined with the delivery of a pallet, you could thus ensure some additional poses of packages on the way.

Stability at standstill

A stable bike stand avoids significant stress on the trailer hitch, the coupling and the bike. Prefer a side bike stand attached near the rear hub which offers good stability when coupled to our trailers.

            Some questions ? Welcome to our F.A.Q. !

            For stability, thus security. With this configuration the trailer cannot tip the bike over to the ground during curves and braking compared to coupling on the seat post (which is not developed to pull a load).

            We also design our bike hitch in order to ensure the safety of the cyclist in the event of an accident (we do not hope so) with a vehicle striking the trailer. The hitch must then break so as not to break the bike frame or to carry the bicycle and the cyclist away.

            FlexiModal is involved in the redaction of the french norm about cargo bike and utilitary trailer.



            BicyLift and Runner are purely mechanical trailers which allow reliability and low maintenance. The main maintenance is the same as on a conventional bike.

            At this stage, European legislation is not clear about the adding engine power of a trailer to an electric bike of 250W which is the standard and the limit. Above this power, the bike has to be insured and registered.
